Premium Commercial Dehydrators

2 Zone - Vertical / 32 Tray / 5.12m² Tray Area

start From
$ 3,129.00
Now
$ 3,129.00
Was
$ 4,759.00
Save
$1,630
What you get:
1 x Commercial Dehydrator
32 x Stainless steel mesh trays
2 x Stainless steel pan drip trays
cart/tray options
Review specs
features

This 100% stainless steel dehydrator is designed for ongoing commercial use with our high-efficiency forced air convection system.

  • Over 5m2 of total tray area, you can dehydrate at commercial rates.
  • Adjustable temperature range between 30 - 90°C as well as ambient mode, running just the fans without activating the heating coil.
  • Using the 99 hour digital timer, you are able to set the time and return hours later with no stress.
  • This highly efficient unit pulls up to 50% less energy than other models with the same dry time.
  • 304 Food Grade stainless steel mesh trays allow food to dry evenly on both sides. No need to rotate or turn food during the drying cycle.
  • Dishwasher safe non-stick mats can be purchased separately for fruit roll ups, flour, grains and also to cut down your cleaning time.
  • Perfect for vegetables, jerky, fruit, pet treats, and so much more. The only limit is your imagination.
Read More
Drop down icon
Show Less
Drop down icon
Be quick there is only:
In local stock
Free Shipping UK wide
free shipping
7 - 10 Business Days
Free Shipping US wide
free shipping
standard
7 - 10 Business Days
Free Shipping CAN wide
priority shipping
Select your options
request a quote / invoice
Calendar Icon
Satisfaction Guarantee - 30 Day Return Policy
Finance Available
Finance Options Available, same day approval
2 Zone - Vertical / 32 Tray / 5.12m² Tray Area
Industrial sales Manager
Speak Directly With the Experts
Send Enquiry
No items found.

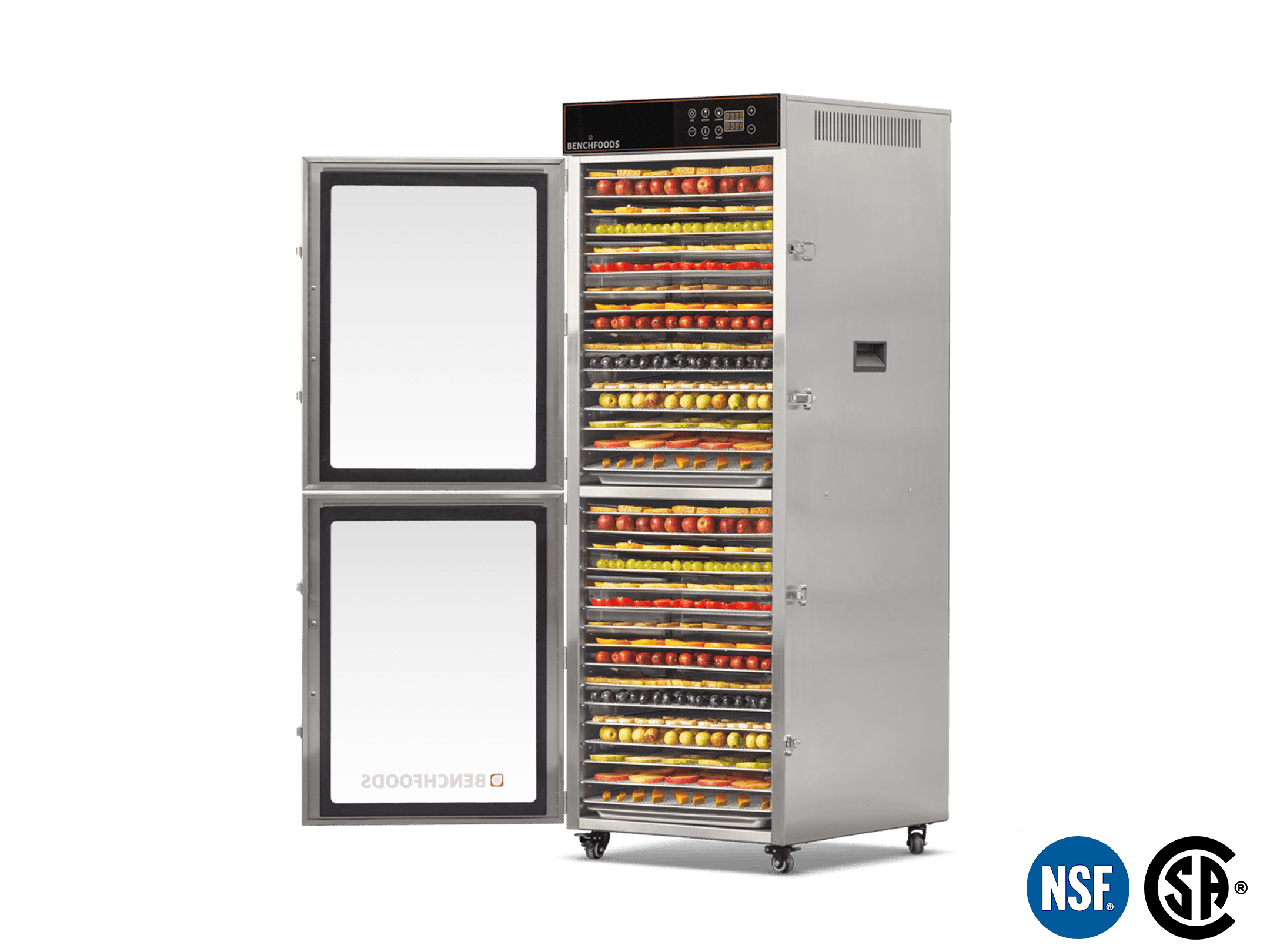

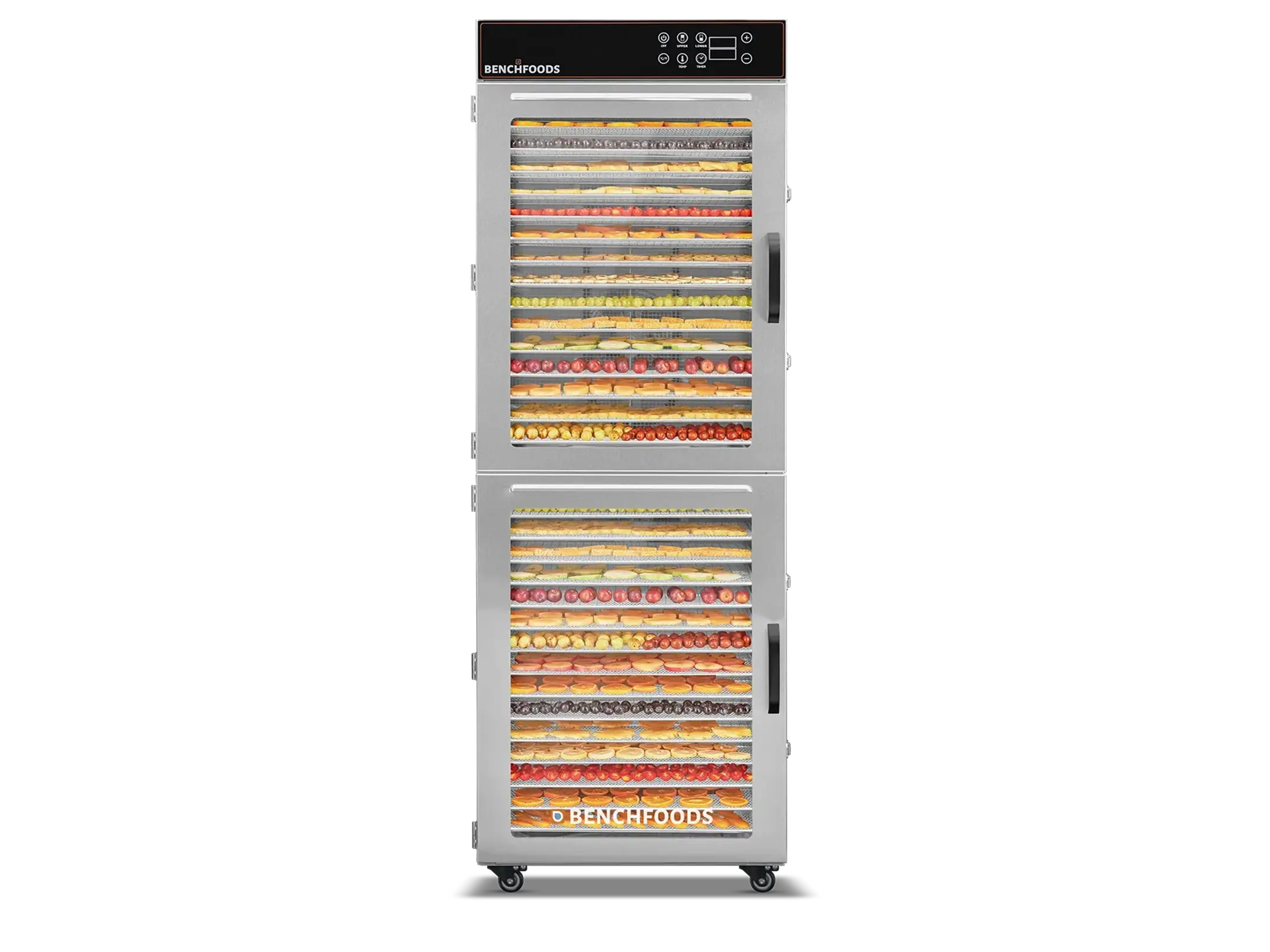

32 tray vertical - commercial dehydrator
32 tray vertical - beef commercial dehydrator
32 tray vertical - food dehydrator
32 tray vertical - Fruit dehydrator
32 tray vertical - Beef Jerky dehydrator
32 tray vertical - Beef Jerky dehydrator
32 tray vertical - fish jerky dehydrator
32 tray vertical - commercial dehydrator digital control panel
32 tray vertical - commercial dehydrator wheels
32 tray vertical - commercial dehydrator handle
32 tray vertical - commercial dehydrator fan blades
32 tray vertical - commercial dehydrator Mesh Trays
32 tray vertical - commercial dehydrator QR code
No items found.
SALE 34% OFF
32 tray vertical - commercial dehydrator
No items found.
Free Shipping CAN wide

Free Shipping across CAnada

Free Shipping CAN wide

3 Year Commercial Warranty

Free Shipping CAN wide

Quick & easy Finance Available

Free Shipping CAN wide

Free Shipping across CAnada

Free Shipping CAN wide

3 Year Commercial Warranty

Free Shipping CAN wide

Quick & easy Finance Available

plc control panel

startup screen

On the initial startup of your dehydrator, you will be presented with the BenchFoods Welcome Screen. From here, you can navigate to the Manual Control page, the Program Control Page, or view the status of all system alarms.

plc control panel

Manual Control

Manual Control is used when you want to run a single batch cycle recipe that will not be used again and is simply a one-off cycle. The Manual Control Page allows you to set the dehydration environment variables. These consist of the time, temperature and the exhaust variables. Once you have confirmed that all the settings are correct, you can run your cycle.

plc control panel

Manual Control (cont.)

The right-hand panel will display the internal feedback metrics during your drying cycle, including your internal chamber temperature, internal product temperature, humidity level & drying cycle time remaining.

plc control panel

Exhaust

Delay Start - This refers to the delay set on the exhaust fan before it starts running through its On/Off cycles; recommended times will be found in your user manual. This allows the unit to get up to temperature quickly and build humidity up in the chamber before the initial exhaust cycle starts.

plc control panel

Exhaust (cont.)

Cycle On - This is the amount of time the exhaust fan runs every time it cycles. Cycle Off - This is how long the exhaust fan closes every cycle. Cycling the exhaust system on & off throughout the drying cycle allows the moisture to be wicked out from the centre of your product. This allows for even consistent drying throughout your product and prevents case hardening.

plc control panel

Program Control

The Select Program Screen displays a list of programs or recipes that can be pre-set to allow for quick access in the future. Program Control allows multiple time and temperature stages to run automatically during a single drying cycle. This is ideal for saving recipes for different products that you may be dehydrating.

plc control panel

Program Edit Screen

Select the program number that you wish to set or access. This will display the program's edit screen. You can update the required fields and save the program for later. If you want to use multiple steps during your cycle, set the temperature and hours/minutes for which this stage should last. If you do not wish to use all the steps, leave them at 0.

Slide left through Industrial Food Dehydrator PLC (Programmable Logic Controller) Control Panel images
Slide right through Industrial Food Dehydrator PLC (Programmable Logic Controller) Control Panel images

Product specs

http://bit.ly/32VCUDCAUM

Download User Manual

Cloud download Icon
Download

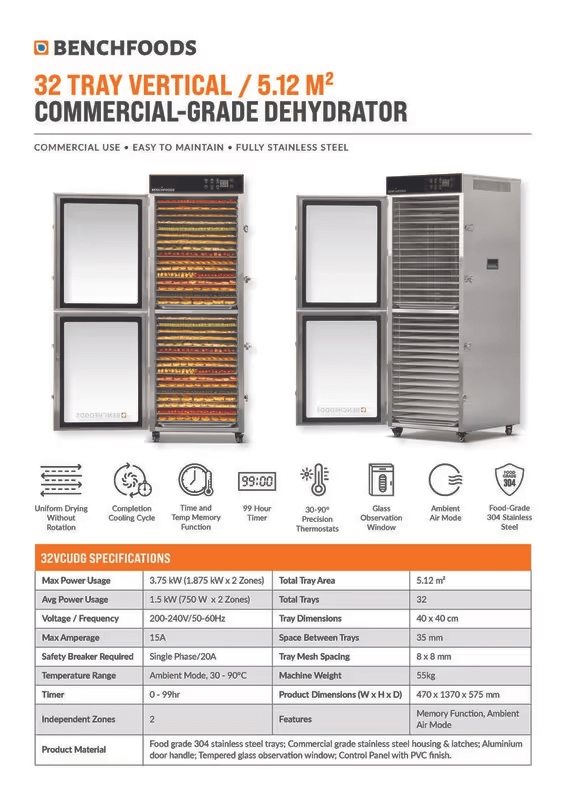

http://bit.ly/32VCUDCASS

Download spec sheet

Cloud download Icon
Download

Trolley options & specs

Model IDUTC-15
Dimensions: (W x H x D) 920 x 1450 x 695 mm
Layers: 15
Layer Spacing 80 mm
Number of Trays 30
Tray area 8.8 m2
Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.
Model IDUTC-18
Dimensions: (W x H x D) 920 x 1450 x 695 mm
Layers: 18
Layer Spacing 67 mm
Number of Trays 36
Tray area 10.6 m2
Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.
Model IDUTC-20
Dimensions: (W x H x D) 920 x 1450 x 695 mm
Layers: 20
Layer Spacing 60 mm
Number of Trays 40
Tray area 11.8 m2
Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.
Model IDUTC-25
Dimensions: (W x H x D) 920 x 1450 x 695 mm
Layers: 25
Layer Spacing 48 mm
Number of Trays 50
Tray area 14.7 m2
Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.
Model IDUTC-30
Dimensions: (W x H x D) 920 x 1450 x 695 mm
Layers: 30
Layer Spacing 40 mm
Number of Trays 60
Tray area 17.7 m2
Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.

Tray Types & specs

Model IDUT-MT
Dimensions: (W x H x D) 46 x 64 x 1cm
Mesh Spacing 12 x 12mm
Tray area 0.3 m2
Model IDUT-FMT
Dimensions: (W x H x D) 46 x 64 x 1cm
Mesh Spacing 2 x 2mm
Tray area 0.3 m2
Model IDUT-FPT
Dimensions: (W x H x D) 46 x 64 cm x (2.5-4.5cm)
Mesh Spacing 15
Tray area 0.3 m2
Model IDUT-PPT
Dimensions: (W x H x D) 46 x 64 cm x (2.5-4.5cm)
Mesh Spacing 8mm Ø
Tray area 0.3 m2
PRODUCT FEATURES SPECIFICATIONS
Brand BenchFoods
Model 32VCUD
Max Power Usage 3.75 kW
Avg Power Usage 1.5 kW
Voltage / Frequency 200-240V/50-60Hz
Max Amperage 15A
Safety Breaker Required Single Phase/20A
Power Cable 3-Wire Cable, No Plug Tip
Power Cable 3-Wire Cable, No Plug Tip
Temperature Range Ambient Mode, 30 - 90°C
Timer 0 - 99hr
Independent Zones 2
Total Tray Area 5.12 m²
Total Trays 32
Tray Dimensions 40 x 40 cm
Space Between Trays 35 mm
Tray Mesh Spacing 8 x 8 mm
Machine Weight 55kg
Product Dimensions (W x H x D) 470 x 1370 x 575 mm
Features Memory Function, Ambient Air Mode
2 Zone - Vertical / 32 Tray / 5.12m² Tray Area

Download User manual

Cloud download Icon
Download
2 Zone - Vertical / 32 Tray / 5.12m² Tray Area

DOWNLOAD SPEC SHEET

Cloud download Icon
Download
2 Zone - Vertical / 32 Tray / 5.12m² Tray Area

Download tech drawing

Cloud download Icon
Download

Why choose a benchfoods dehydrator?

Here is a number of reasons we can’t be compared with the rest

COMMERCIAL GRADE QUALITY
Our entire product line is commercial grade stainless steel inside and out. Built for the demand of ongoing commercial use. These units are easy to clean, maintain, and most important food safe.
99 hour timer
Designed for all products and industries in mind, our 99-hour timer will cover anything you might need to dehydrate for more than a full day of drying time.
30-90°C PRECISION THERMOSTATS
Get the quality outcome you're looking for with our precision thermostats.
Outstanding temperature control and temperature hold anywhere from 30-90°C.
DOUBLE-WALLED STAINLESS STEEL
Double-walled stainless steel allows for better energy efficiency by keeping the heat where it belongs, inside the drying chamber. This feature also keeps the sides of the machine cool to touch.

TECH FEATURES

HORIZONTAL AIR FLOW
HORIZONTAL AIR FLOW
No need to rotate trays or flip product mid-cycle. Our units use horizontal airflow technology to create even drying across all trays every time.
TIME AND TEMP MEMORY
TIME AND TEMP MEMORY
The unit remembers the last time and
temperature setting from your previous batch making it easier and quicker if repeating the same recipes in future batches.
TEMPERED GLASS PANEL
TEMPERED GLASS PANEL
These completely food-safe glass panels allow you to operate the controls while wearing food safety gloves. Cleaning them is super easy and they can withstand impacts of 10,000 pounds per square inch, making them perfect for the commercial environment.
AMBIENT AIR MODE
AMBIENT AIR MODE
If you desire to dry your product using fans only and no heat, simply set the temperature to 00 on the control panel. This can be great for drying products such as herbs, biltong and some seafoods.

Machine highlights

POWERFUL FULLY SEALED MOTORS
POWERFUL FULLY SEALED MOTORS
Waterproof fan motors feature top-grade dual ball bearings and pure copper coils with an ideal dehydrating motor speed of 1800rpm.
GLASS OBSERVATION WINDOW
GLASS OBSERVATION WINDOW
Our heat-resistant tempered glass windows are extremely strong and don’t let any heat escape. Able to withstand an impact of 10,000 pounds per square inch. They can also withstand temperatures of up to 260°C.
PREMIUM FOOD-GRADE TRAYS
premium food-grade trays
Our food-grade 304 stainless steel trays are made for the ongoing demand of the commercial food environment. They are easy to clean & maintain, dishwasher safe and are non-corrosive.
PREMIUM FOOD-GRADE TRAYS
116 Stainless steel hooks
With double the amount of hooks as our previous model, this 116 hook dehydrator increases your production capacity while maintaining the same energy consumption. The bottom rotisserie tray is also removable, providing you with the flexibility to only use 58 hooks for larger products.
STRONG CASTOR WHEELS
STRONG CASTOR WHEELS
Our lockable caster wheels make moving the unit into place and moving them for cleaning extremely easy. Once you get the unit where you want it to stay, simply lock it into place.

Commercial Warranty

1. WHAT DOES THIS WARRANTY COVER?
This Commercial Warranty covers any defects for material or workmanship under normal commercial use during the Warranty Period. During the Warranty Period, BenchFoods will repair, at no charge, products or parts of a products that prove defective under normal commercial use.

2. WHAT WILL WE DO TO CORRECT PROBLEMS?
BenchFoods will action 1 of 3 scenarios based on the defect and the product purchased;
1. Send a brand-new replacement of the defective product.
*Does not apply for custom industrial orders*
2. If the defective part of the product is already identified, we will ship the replacement part and have a service technician come onsite to replace and install once it has arrived.
3. Send out a service technician to investigate the defect. Once the issue has been identified, the technician will either fix the defect immediately or notify BenchFoods of replacement parts needed. If the latter, BenchFoods will ship the required replacement parts to the service address. The technician will then return onsite to service and fix the product.

3. HOW LONG DOES THE COVERAGE LAST?
The Warranty Period for Commercial and Industrial Dehydrators, as well as their accessories, is 3 years from the original date of purchase. Individual Dehydrator Parts purchased are not covered by warranty unless they are received through a warranty claim on a previously purchased product. In this case, a replacement product or part/s assumes the remaining warranty of the original Physical Good or 180 days from the date of replacement or repair, whichever is longer.

Further information can be found on our warranty page.
More Info

Shipping & Returns

Domestic: Shipping timelines are based on inventory and stock locations. To check shipping timelines you may visit the individual product page located just above the “add to cart” button. Items in local stock will ship next business day and will take somewhere between 7-10 business days depending on location and size of the freight.

International:
We have regional distribution warehouses located across the globe. Because of our global operation, we get inexpensive international shipping rates. Some countries we can deliver all the way to the end delivery address and others we may only be able to deliver to customs entry point.
More Info

Frequently Asked Questions

How much does shipping cost?

How long does shipping take?

Do you deliver internationally?

Does the unit include trays?

How much can I dehydrate in this unit?

How the unit comes to you

our priority

Quick, safe, secure & Free delivery

Shipping Insurance is also available on all orders in the checkout page

Frequently Asked Questions

How much does shipping cost?

How long does shipping take?

Do you deliver internationally?

Does the unit include trays?

How much can I dehydrate in this unit?

What new features does the rotisserie machine have?

How many hooks does the Rotisserie machine have?

Is it possible to use the Rotisserie machine for larger products?

What types of products is the Rotisserie machine suitable for?

Does the rotisserie machine have a large energy consumption?

Commercial Warranty

Shipping & Returns

Non-Stick Dehydrator Mats

FDA-APPROVED FOOD-SAFE NON-STICK MATS
TEMPERATURE RESISTANT, WATER REPELLENT, & 100% NON-STICK REUSABLE, DURABLE, & EASY TO CLEAN
Total Mat Area 0.2m²/tray
Dimensions 40cm x 40cm
Material Premium non-stick, FDA-approved food-safe, Teflon-coated, fiberglass mat
Weight 0.07kg/mat
Mat Type Solid
Back to top
FDA-APPROVED FOOD-SAFE NON-STICK MATS TEMPERATURE RESISTANT, WATER REPELLENT, & 100% NON-STICK REUSABLE, DURABLE, & EASY TO CLEAN
Total Mat Area 0.2m²/tray
Dimensions 40cm x 40cm
Mesh Spacing 4mm x 4mm
Material Premium non-stick, FDA-approved food-safe, Teflon-coated, fiberglass mat
Weight 0.09kg/mat
Mat Type Mesh
Back to top
FDA-APPROVED FOOD-SAFE NON-STICK MATS
TEMPERATURE RESISTANT, WATER REPELLENT, & 100% NON-STICK REUSABLE, DURABLE, & EASY TO CLEAN
Total Mat Area 0.4m²/tray
Dimensions 50cm x 85cm
Material Premium non-stick, FDA-approved food-safe, Teflon-coated, fiberglass mat
Weight 0.07kg/mat
Mat Type Solid
Back to top
FDA-APPROVED FOOD-SAFE NON-STICK MATS TEMPERATURE RESISTANT, WATER REPELLENT, & 100% NON-STICK REUSABLE, DURABLE, & EASY TO CLEAN
Total Mat Area 0.4m²/tray
Dimensions 50cm x 85cm
Mesh Spacing 4mm x 4mm
Material Premium non-stick, FDA-approved food-safe, Teflon-coated, fiberglass mat
Weight 0.024kg/mat
Mat Type Mesh
Back to top

industrial dehydrator

Machine Features

CSV Data Export

Our Industrial Dehydrators feature a convenient USB backup system that automatically records all analytical feedback metrics during the drying cycle. This allows you to easily view and export a spreadsheet of internal chamber temperature, internal product temperature, and chamber humidity levels at 15-minute intervals from previous drying cycles. With this feature, you can keep track of all your drying cycle details and ensure consistent quality control. This is especially useful for production facilities audited by governing safety bodies like the USDA. With our CSV data export feature, you can easily comply with safety regulations and ensure the highest product safety and quality standards.

Remote Operational Control

With our desktop and mobile app, you can easily control and monitor your BenchFoods™ Industrial Dehydrator anywhere in the world. Connect your dehydrator unit to an Ethernet network, and you’ll have access to the actual PLC screen, allowing you to adjust settings and monitor progress remotely. This feature gives you greater flexibility and convenience in managing your drying process, allowing you to save time and maximize efficiency. With our remote operational control, you can be confident that your dehydrator is always performing at its best, no matter where you are.

DrySync™ Technology

Introducing DrySync™ technology. This advanced system allows you to precisely regulate the intake and exhaust valves for the airflow system. It starts by building up the humidity level in the drying chamber. Then it cycles the exhaust system on and off throughout the drying program to evenly remove moisture from the centre of your product. This ensures even and consistent drying while preventing case hardening, which leads to premature food spoilage due to internal mould and bacteria growth. With our DrySync™ technology, you can achieve optimal drying results every time, ensuring the highest quality end product.

Programmable Staged Drying

Our unique Programmable Logic Controllers (PLC) enable you to conduct staged drying cycles according to a predetermined recipe. With up to five customizable steps, each with its own programmable temperature and time settings, you can achieve precise and consistent results every time. This feature is particularly useful for “kill-step” processes when making beef jerky and for reducing dry times by starting the cycle with a higher temperature and then gradually decreasing as your product loses its moisture. With this method, you’ll achieve the same product consistency, texture, and appearance in less time without sacrificing quality.

Uniform Drying without Rotation

With our advanced dynamic airflow panels, you will experience evenly distributed hot, dry air across every tray, eliminating the need to rotate your product or trolleys during the drying cycle. Meticulously laser-cut for optimal precision, these panels generate back pressure within the heating chamber, ensuring uniform drying throughout the chamber. With this technology, you can achieve consistent and efficient drying results without extra effort or intervention.

ISO 9001 Manufacturing Facility

Designed and manufactured in an ISO9001-certified facility, it ensures the highest quality standards are met throughout the entire manufacturing process. This internationally recognized standard for quality management systems is a testament to our commitment to excellence in every aspect of our operations, from design to production and beyond. Our ISO9001 certification assures our customers that we adhere to strict quality control processes, using only the highest quality materials and manufacturing techniques to ensure our products’ reliability, performance, and safety. By choosing our ISO9001-certified dehydrators, you can be confident in the quality and consistency of your drying results, and trust that you are investing in a product that has undergone rigorous testing and meets the highest standards of quality and safety.

Completion Cooling Cycle

Our Industrial Dehydrators feature a Completion Cooling Cycle, a vital part of any production process. This cycle ensures that your product is fully cooled to a safe temperature before being handled or packaged. This is important for worker safety, as stainless steel trolleys and trays can hold heat for quite some time. Additionally, bringing the core temperature of your product down fully prior to packaging prevents condensation or moisture from building up inside your packaging during storage, which can affect your product’s quality and shelf life. With our Completion Cooling Cycle, you can ensure the safety and quality of your end product while minimizing waste and maximizing efficiency.

Store Saved Recipes

Equipped with a Programmable Logic Controller that allows you to store up to 15 programs or saved recipes, each with individual programmable steps for temperature and time control. You can also operate a unique DrySync program and cooldown cycle inside these programs, making it easy to dial in your recipes and ensure consistent and efficient drying results. This feature is particularly useful for production facilities that may be doing food trials or drying different types of products. It minimizes the risk of human error and ensures the accuracy and consistency of your drying process. With our programmable recipe storage, you can easily access and modify your saved recipes, ensuring optimal efficiency and productivity for your operation.

Energy-Saving Technology

Our Industrial Dehydrators incorporates a patented Power-Throttling Technology that adjusts the power output based on the set temperature of the chamber. This innovative design allows the units to operate at a reduced power rating, resulting in an impressive 35-45% increase in energy efficiency compared to traditional drying ovens. With our energy-saving technology, you can achieve the same great results while reducing your energy consumption and costs.

Premium High-quality Components

Our industrial dehydrators are built using only the highest quality components and parts, ensuring unparalleled performance and durability. We pride ourselves on using top-grade brands such as Siemens and Schneider for our components, ensuring that our dehydrators are reliable and built to last. Our commitment to using the best components and parts is just one of the ways we ensure that our customers receive the best products possible.

Food-Grade 304 Stainless Steel

Our Industrial Dehydrators are constructed with the highest quality 304 Food-Grade Stainless Steel available. This stainless steel grade contains higher levels of chromium and nickel, which forms a protective layer on the surface, preventing corrosion (rust), and preventing the formation of bacteria and other microorganisms. Additionally, it’s non-reactive and won’t react with acidic or alkaline substances found in food and cleaning agents. This steel is also very easy to clean and sanitize, which is essential in food production facilities. In summary, using food-grade stainless steel ensures food safety and hygiene by preventing contamination and maintaining the quality of the food being processed.

Speedy 3-Month Manufacturing & Delivery

We pride ourselves on delivering high-quality custom-built dehydrators to meet your specific needs and your onsite electrical requirements. From production to delivery, our team works closely with you to ensure your machine perfectly suits your unique requirements. And thanks to our streamlined manufacturing process, we can deliver your custom-built dehydrator to your doorstep in just three months. That means you won’t have to wait long to start enjoying the benefits of your new machine.

Commercial warranty

1. WHAT DOES THIS WARRANTY COVER?
This Commercial Warranty covers any defects for material or workmanship under normal commercial use during the Warranty Period. During the Warranty Period, Commercial Dehydrators Australia will repair, at no charge, products or parts of a products that proves defective under normal commercial use.

2. WHAT WILL WE DO TO CORRECT PROBLEMS? Commercial Dehydrators Australia will action 1 of 3 scenarios based on the defect and the product purchased;
1. Send a brand-new replacement of the defective product. *Does not apply to custom industrial orders*
2. If the defective part of the product is already identified, we will ship the replacement part and have a service technician come onsite to replace and install once it has arrived.
3. Send out a service technician to investigate the defect. Once the issue has been identified, the technician will either fix the defect immediately or notify Commercial Dehydrators Australia of replacement parts needed. If the latter, Commercial Dehydrators Australia will ship the required replacement parts to the service address. The technician will then return onsite to service and fix the product.

3. HOW LONG DOES THE COVERAGE LAST?
The Warranty Period for Commercial and Industrial Dehydrators, as well as their accessories, is 3 years from the original date of purchase. Individual Dehydrator Parts purchased are not covered by warranty unless they are received through a warranty claim on a previously purchased product. In this case, a replacement product or part/s assumes the remaining warranty of the original Physical Good or 180 days from the date of replacement or repair, whichever is longer.

Further information can be found on our warranty page.
More Info

Shipping & Returns

Shipping: Standard Domestic Shipping is included in your Industrial Unit price. These units are made to order and will take around 12-16 weeks to your door.

Returns: As these units are built to order and often have specific modifications to an individual customer, returns are not accepted unless due to manufacturing issues that are unable to be resolved from a technician servicing.
More Info

Frequently Asked Questions

How much does shipping cost?

How long does shipping take?

Do you deliver internationally?

Does the unit include trays?

How much can I dehydrate in this unit?

Benchfoods Dehydrators

Click and play 3d model

wondering the size of the dehydrator in your own work space?

View a 3D to scale model of the Dehydrator in your workspace on your iPhone. It's easy! Just click the button below to get started.
Only for Apple iPhones using iOS12 and above.
View instructions

Accessories

Do you also need?

Main Product Image
Accessories

Temperature Probe

Each
$ 49.00
Main Product Image
Accessories

40 x 40cm Stainless Steel Mesh Trays

Each
$ 16.49
Main Product Image
Accessories

40 x 40cm Stainless Steel Pan Trays

Each
$ 19.95
2 Zone - Vertical / 32 Tray / 5.12m² Tray Area
Premium Commercial Dehydrators

2 Zone - Vertical / 32 Tray / 5.12m² Tray Area

Now
add to cart
